Especificaçãos

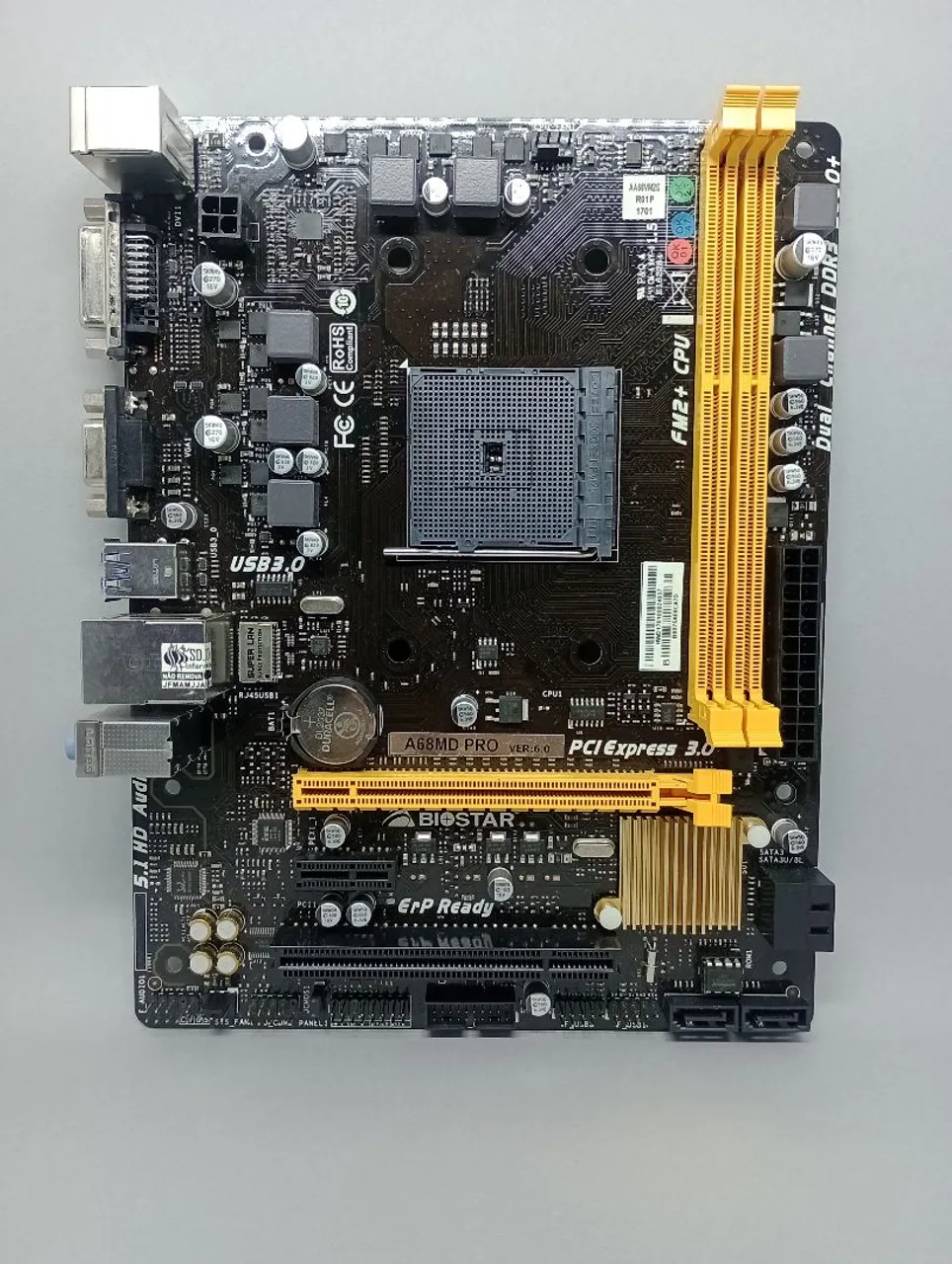

A68MD PRO
Chipset AMD A70M
CPU SUPPORT AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon? II X4 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt
MEMORY Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory
INTEGRATED VIDEO By CPU model
AMD Dual Graphics Technology
Supports DX11.1
Supports HDCP
STORAGE 4 x SATA III Connector
* Specifications vary by CPU typesSupport SATA RAID: 0,1,10
* Specifications vary by CPU types
LAN Realtek RTL8111G - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
AUDIO CODEC Realtek ALC662 6-Channel HD Audio
USB 2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot(supported by FM2+ CPU)
* Specifications vary by CPU types1 x PCI-E 2.0 x1 Slot
* Specifications vary by CPU types1 x PCI Slot
* Specifications vary by CPU types
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x DVI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L )
