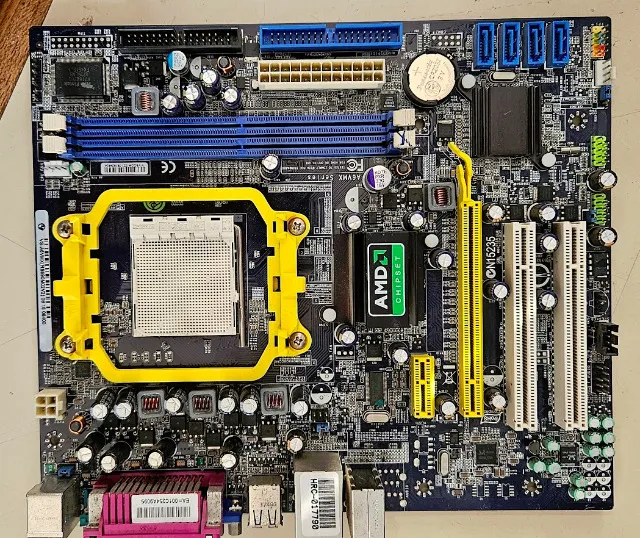

Placa-mãe compatível com processadores AMD. Possui diversos conectores e slots para expansão. Ideal para quem busca montar ou fazer upgrade em seu computador.
PLACA MÃE USADA E EM PERFEITO FUNCIONAMENTO!
AMD Athlon? 64FX, Athlon? 64x2, Athlon? 64, Sempron? Processors, Phenon, Socket AM2
Supports Socket AM2+ with HT1.0 interface
2000 MT/s HyperTransport?
Dual channel DDR2 800/667/533 x 2 DIMMs, Max 4GB
1 x PCIe x16, 1x PCIe x1, 2 x PCI
ATA x 1, SATAII x 4
5.1 channel, Realtek® ALC662
10/100M LAN, Realtek® RTL8101E
8 USB 2.0 ports
Especificações
Processor*:
AMD Athlon? 64FX, Athlon? 64x2, Athlon? 64, Sempron? Processors, Socket AM2 , Phenon X3 e X4
Supports Socket AM2+ with HT1.0 interface .
*Consulte todos os processadores suportados no box "download".
Chipset: AMD® 690V + SB600
Front Side Bus: 2000MT/s HyperTransport?
Memory: Dual channel DDR2 800/667/533 x 2 DIMMs, Max. 4GB
VGA on Die: Integrated
Expansion Slots: 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
IDE: ATA 133 x1
Serial ATA(SATA)/RAID: SATAII x 4 w / RAID 0, 1, 10
Audio: 5.1 channel, Realtek® ALC662
LAN: 10/100M LAN, Realtek® RTL8101E
IEEE1394: N/A
Back Panel I/O Ports:
1 set 5.1 channel Audio jacks (3 jacks)
1x Parallel port
1x PS/2 keyboard port
1x PS/2 mouse port
1x VGA port
4x USB 2.0 ports
1x RJ45 LAN port
1x Serial port
Internal I/O Connectors:
ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU / System / NB (Reserved) FAN connectors
1x CD-in connector
1x Front Audio header
1x S/PDIF Out header
1x IRDA
1x TV Out header
1x Buzzer (Reserved)
1x Floppy connector
1x Front Panel connector
2x USB 2.0 connectors support additional 4 ports
1x Speaker
4x SATAII connectors
1x Intruder
1x COM header (Reserved)
1x TPM (Reserved)
2x USB Power header
1x IDE connector
BIOS Features:
8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD: Driver CD, Adobe Reader, Direct X 9.0c, Norton
Standards / Manageability: USB 2.0, WfM 2.0, DMI 2.5, WOL by PME, SPI Interface
Form Factor: Micro ATX (9.6" x 8.2")
