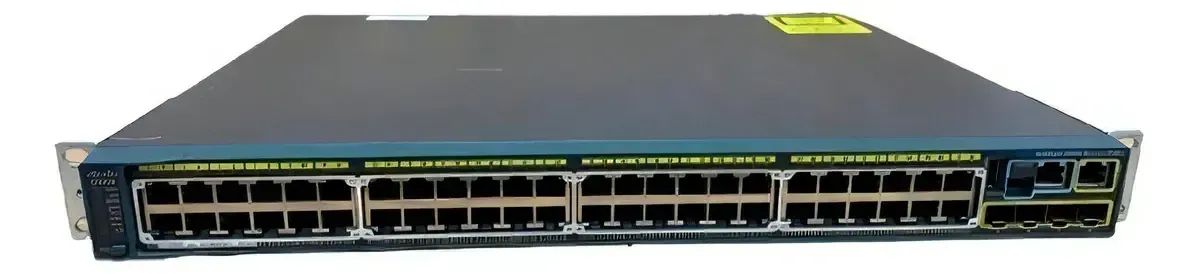

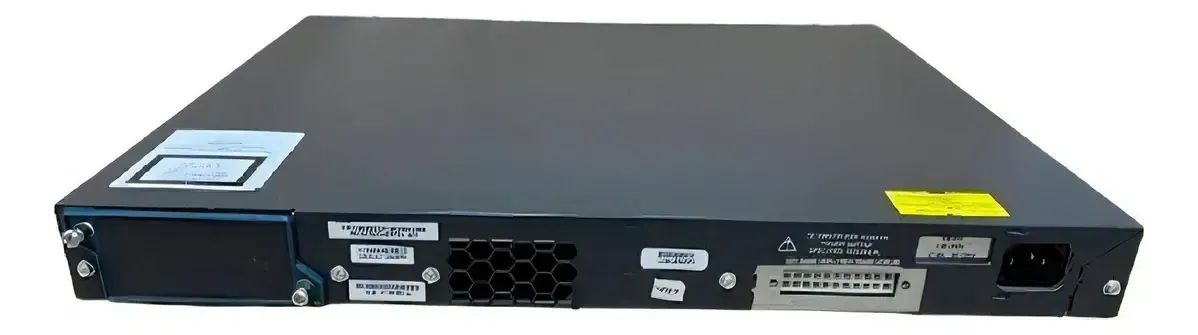

SWITCH GIGABIT POE CISCO 2960S 48 PORTAS WS-C2960S-48FPS-L E MÓDULO STACK SEMINOVO
ITENS INCLUSOS: MÓDULO STACK (SEM OS CABOS), CABO DE ENERGIA ELÉTRICA E KIT DE FIXAÇÃO EM RACK.
SWITCH CISCO 2960S - WS-C2960S-48LPSBR
48 PORTAS 10/100/1000 POE
04 PORTAS SFP 1G
FONTE 370W
GENERAL
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE) + 4 x SFP
Power Over Ethernet (PoE): PoE
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
RAM: 128 MB
MAC Address Table Size: 8K entries
Status Indicators: Port status, port transmission speed, port duplex mode, power, system, link/activity
Encryption Algorithm: SSL
Manufacturer: Cisco
POWER DEVICE
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Power Consumption Operational: 71 Watt
Type: internal power supply
NETWORKING
MAC Address Table Size: 8K entries
Form Factor: rack-mountable
Type: Switch
Features: ARP support, Access Control List (ACL) support, BOOTP support, Broadcast Storm Control, DHCP snooping, DiffServ support, Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, PoE+, Port Aggregation Protocol (PAgP) support, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Syslog support, Unicast Storm Control, VLAN support, auto-negotiation, auto-sensing per device, auto-uplink (auto MDI/MDI-X), dynamic IP address assignment, layer 2 switching, load balancing, power over Ethernet (PoE)
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports Qty: 48
Manageable: Yes
Remote Management Protocol: http, https, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
Power Over Ethernet (PoE): PoE
MISCELLANEOUS
Rack Mounting Kit: optional
Encryption Algorithm: SSL
MTBF: 205052 hour(s)
Height (Rack Units): 1 m
ENVIRONMENTAL PARAMETERS
Humidity Range Storage: 10 - 95% (non-condensing)
Min Storage Temperature: -13 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 23 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 95% (non-condensing)
DIMENSIONS & WEIGHT
Width: 17.5 in
Depth: 15.2 in
Height: 1.8 in
Weight: 12.72 lbs
SOFTWARE
Type: Cisco IOS LAN Base
PORTS
Type: 10/100/1000 (PoE)
Qty: 48
EXPANSION SLOTS
Type: Stacking Module slot
Total Qty: 1
Free Qty: 1
PORTS (2ND)
Type: SFP (mini-GBIC)
Qty: 4
PERFORMANCE
Type: forwarding performance (64-byte packet size), switching capacity
Value: 176 Gbps, 77.4 Mpps
